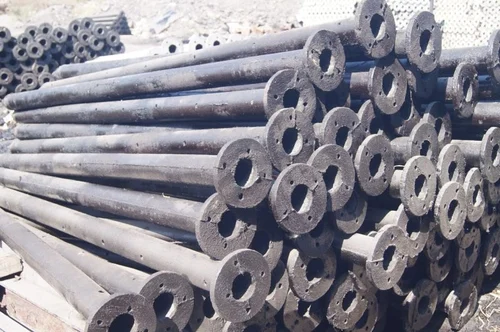

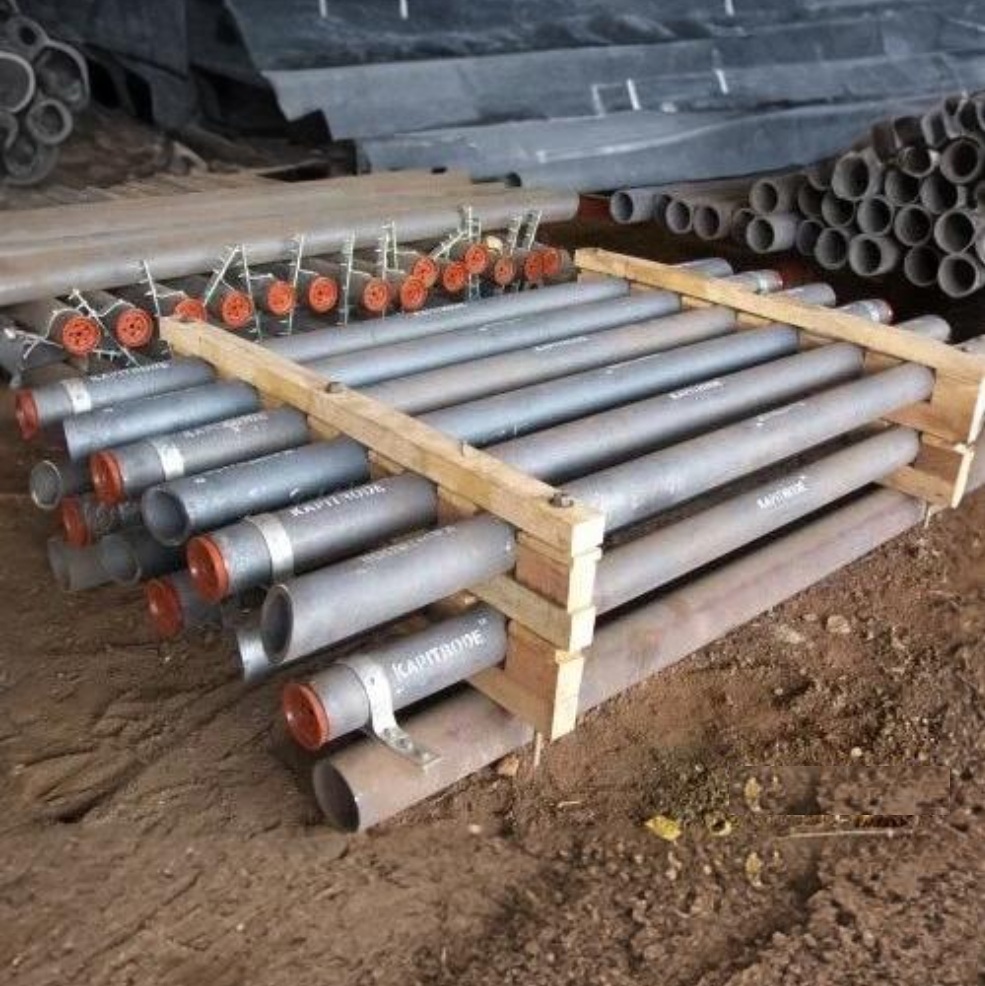

CI Earthing Electrode (Cast Iron Earthing Electrode) is a traditional and robust grounding solution manufactured using high-grade cast iron material. It is designed to provide effective dissipation of fault current into the ground, ensuring electrical safety and system protection.
CI earthing electrodes are widely used in areas with high soil resistivity and are preferred for heavy-duty applications such as substations, industrial plants, electrical rooms, and large infrastructure projects.
Key features
- Manufactured from heavy-duty cast iron material
- Excellent mechanical strength and impact resistance
- Suitable for high fault current applications
- Performs well in high soil resistivity areas
- Long service life with minimal maintenance
- Cost-effective earthing solution for large installations
CI earthing electrodes provide reliable grounding by maintaining stable earth resistance, helping protect electrical systems, equipment, and human life from electrical faults and lightning surges.
Heavy-duty construction
Cast iron body ensures strength and durability.
Stable grounding
Provides consistent earthing performance over time.
Why choose CI earthing electrode
CI earthing electrodes are preferred for their strength, reliability, and ability to handle high fault currents.
These electrodes are ideal for heavy electrical installations where long-term grounding stability is required. Their rugged construction makes them suitable for harsh environmental and soil conditions.
Technical Specifications
| SR | Outer Pipe Dia (MM) | Length (Mtr) | Terminal Size (MM) | Material | Specification |
|---|---|---|---|---|---|
| CI1 | 75 | 2 | 50 × 6 | Cast Iron | Single Pipe |
| CI2 | 75 | 3 | 50 × 6 | Cast Iron | Single Pipe |
| CI3 | 80 | 3 | 50 × 6 | Cast Iron | Single Pipe |
| CI4 | 100 | 3 | 50 × 6 | Cast Iron | Single Pipe |
Common questions about CI earthing electrode
A CI earthing electrode is a cast iron grounding electrode used to safely dissipate fault current into the earth.
They are commonly used in substations, power plants, factories, industrial units, and large electrical installations.
CI earthing electrodes offer high strength, stable performance, long service life, and are suitable for heavy-duty applications.
